Size - Spec
Timing Belts G (XXH) Standard Belt Sizes
Product Code
| 1200 | XXH | 500 | G |
|---|---|---|---|
| nominal length(inch)×10120 inch (3048.00 mm) | Tooth Profile | nominal width(inch)×1005 inch (127.0 mm) | G Type (rubber) |

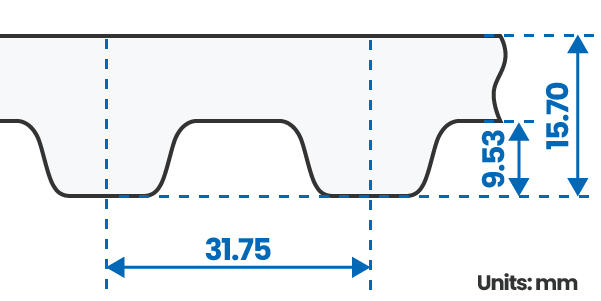

Tooth Profile
Width Lineup
| Nominal width | Belt width (mm) |
|---|---|
| 200 | 50.8 |
| 300 | 76.2 |
| 400 | 101.6 |
| 500 | 127.0 |
| 600 | 152.4 |
Belt Sizes
| Product Code | Number of teeth | Pitch Length (mm) |
| 700 XXH‐G | 56 | 1778 |
| 800 XXH‐G | 64 | 2032 |
| 900 XXH‐G | 72 | 2286 |
| 1000 XXH‐G | 80 | 2540 |
| 1200 XXH‐G | 96 | 3048 |
| 1400 XXH‐G | 112 | 3556 |
| 1600 XXH‐G | 128 | 4064 |
| 1800 XXH‐G | 144 | 4572 |
