Size - Spec
Timing Belts G (XH) Standard Belt Sizes
Product Code
| 1120 | XH | 300 | G |
|---|---|---|---|
| Nominal Length(inch)×10112 inch (2844.80 mm) |
Tooth Profile | Nominal Width(inch)×1003 inch (76.2 mm) | G Type (rubber) |

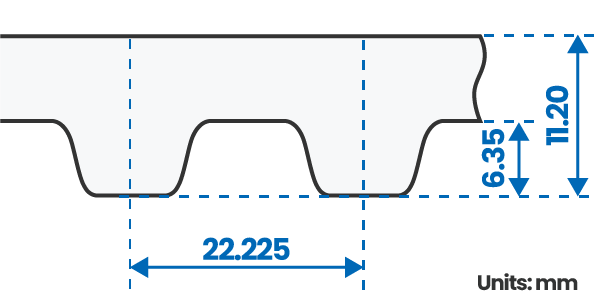

Tooth Profile
Width Lineup
| Nominal width | Belt width (mm) |
|---|---|
| 200 | 50.8 |
| 300 | 76.2 |
| 400 | 101.6 |
| 500 | 127.0 |
| 600 | 152.4 |
Belt Sizes
| Product Code | Number of teeth | Pitch Length (mm) |
| 463 XH‐G | 53 | 1177.93 |
| 507 XH‐G | 58 | 1289.05 |
| 560 XH‐G | 64 | 1422.40 |
| 630 XH‐G | 72 | 1600.20 |
| 700 XH‐G | 80 | 1778.00 |
| 735 XH‐G | 84 | 1866.90 |
| 770 XH‐G | 88 | 1955.80 |
| 840 XH‐G | 96 | 2133.60 |
| Product Code | Number of teeth | Pitch Length (mm) |
| 927 XH‐G | 106 | 2355.85 |
| 980 XH‐G | 112 | 2489.20 |
| 1120 XH‐G | 128 | 2844.80 |
| 1260 XH‐G | 144 | 3200.40 |
| 1400 XH‐G | 160 | 3556.00 |
| 1540 XH‐G | 176 | 3911.60 |
| 1750 XH‐G | 200 | 4445.00 |
