Size - Spec
Timing Belts G (MXL) Standard Belt Sizes
Product Code
| 125 |
MXL |
6.4 |
GB |
| Number of teeth |
Tooth Profile |
Nominal width |
GB Type (rubber) |

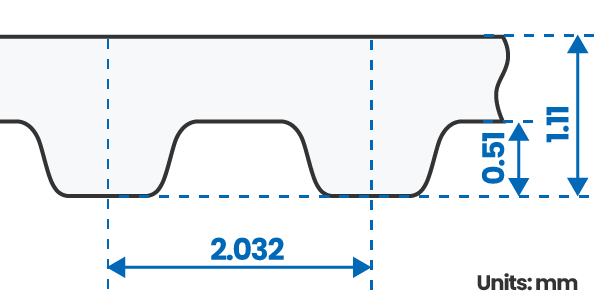

Tooth Profile
Width Lineup
| Nominal width |
Belt width (mm) |
| 3.2 | 3.2 |
| 4.8 | 4.8 |
| 6.4 | 6.4 |
| 9.5 | 9.5 |
| 12.7 | 12.7 |
Belt Sizes
| Product Code |
Number of teeth |
Pitch Length (mm) |
| 34 MXL‐GB |
34 |
69.09 |
| 35 MXL‐GB |
35 |
71.12 |
| 40 MXL‐GB |
40 |
81.28 |
| 41 MXL‐GB |
41 |
83.31 |
| 45 MXL‐GB |
45 |
91.44 |
| 46 MXL‐GB |
46 |
93.47 |
| 48 MXL‐GB |
48 |
97.54 |
| 49 MXL‐GB |
49 |
99.57 |
| 50 MXL‐GB |
50 |
101.60 |
| 51 MXL‐GB |
51 |
103.63 |
| 52 MXL‐GB |
52 |
105.66 |
| 53 MXL‐GB |
53 |
107.70 |
| 54 MXL‐GB |
54 |
109.73 |
| 55 MXL‐GB |
55 |
111.76 |
| 56 MXL‐GB |
56 |
113.79 |
| 57 MXL‐GB |
57 |
115.82 |
| 59 MXL‐GB |
59 |
119.89 |
| 60 MXL‐GB |
60 |
121.92 |
| 61 MXL‐GB |
61 |
123.95 |
| 63 MXL‐GB |
63 |
128.02 |
| 65 MXL‐GB |
65 |
132.08 |
| 66 MXL‐GB |
66 |
134.11 |
| 67 MXL‐GB |
67 |
136.14 |
| 68 MXL‐GB |
68 |
138.18 |
| 70 MXL‐GB |
70 |
142.24 |
| 71 MXL‐GB |
71 |
144.27 |
| 72 MXL‐GB |
72 |
146.30 |
| 73 MXL‐GB |
73 |
148.34 |
| 74 MXL‐GB |
74 |
150.37 |
| 75 MXL‐GB |
75 |
152.40 |
| 76 MXL‐GB |
76 |
154.43 |
| 77 MXL‐GB |
77 |
156.46 |
| 78 MXL‐GB |
78 |
158.50 |
| 79 MXL‐GB |
79 |
160.53 |
| 80 MXL‐GB |
80 |
162.56 |
| 81 MXL‐GB |
81 |
164.59 |
| 82 MXL‐GB |
82 |
166.62 |
| 83 MXL‐GB |
83 |
168.66 |
| 85 MXL‐GB |
85 |
172.72 |
| 86 MXL‐GB |
86 |
174.75 |
| 87 MXL‐GB |
87 |
176.78 |
| 88 MXL‐GB |
88 |
178.82 |
| 89 MXL‐GB |
89 |
180.85 |
| 90 MXL‐GB |
90 |
182.88 |
| 91 MXL‐GB |
91 |
184.91 |
| 92 MXL‐GB |
92 |
186.94 |
| 93 MXL‐GB |
93 |
188.98 |
| 94 MXL‐GB |
94 |
191.01 |
| 95 MXL‐GB |
95 |
193.04 |
| 96 MXL‐GB |
96 |
195.07 |
| 97 MXL‐GB |
97 |
197.10 |
| 98 MXL‐GB |
98 |
199.14 |
| 100 MXL‐GB |
100 |
203.20 |
| 101 MXL‐GB |
101 |
205.23 |
| 102 MXL‐GB |
102 |
207.26 |
| 103 MXL‐GB |
103 |
209.30 |
| 104 MXL‐GB |
104 |
211.33 |
| 105 MXL‐GB |
105 |
213.36 |
| 106 MXL‐GB |
106 |
215.39 |
| 108 MXL‐GB |
108 |
219.46 |
| 109 MXL‐GB |
109 |
221.49 |
| 110 MXL‐GB |
110 |
223.52 |
| 112 MXL‐GB |
112 |
227.58 |
| 114 MXL‐GB |
114 |
231.65 |
| 115 MXL‐GB |
115 |
233.68 |
| 118 MXL‐GB |
118 |
239.78 |
| 119 MXL‐GB |
119 |
241.81 |
| 120 MXL‐GB |
120 |
243.84 |
| 121 MXL‐GB |
121 |
245.87 |
| 122 MXL‐GB |
122 |
247.90 |
| 123 MXL‐GB |
123 |
249.94 |
| 125 MXL‐GB |
125 |
254.00 |
| 126 MXL‐GB |
126 |
256.03 |
| 127 MXL‐GB |
127 |
258.06 |
| 128 MXL‐GB |
128 |
260.10 |
| 129 MXL‐GB |
129 |
262.13 |
| 130 MXL‐GB |
130 |
264.16 |
| 131 MXL‐GB |
131 |
266.19 |
| 132 MXL‐GB |
132 |
268.22 |
| 134 MXL‐GB |
134 |
272.29 |
| 135 MXL‐GB |
135 |
274.32 |
| 138 MXL‐GB |
138 |
280.42 |
| 140 MXL‐GB |
140 |
284.48 |
| 142 MXL‐GB |
142 |
288.54 |
| 144 MXL‐GB |
144 |
292.61 |
| 145 MXL‐GB |
145 |
294.64 |
| 146 MXL‐GB |
146 |
296.67 |
| 147 MXL‐GB |
147 |
298.70 |
| 148 MXL‐GB |
148 |
300.74 |
| 150 MXL‐GB |
150 |
304.80 |
| 151 MXL‐GB |
151 |
306.83 |
| 152 MXL‐GB |
152 |
308.86 |
| 154 MXL‐GB |
154 |
312.93 |
| 155 MXL‐GB |
155 |
314.96 |
| 156 MXL‐GB |
156 |
316.99 |
| 158 MXL‐GB |
158 |
321.06 |
| 160 MXL‐GB |
160 |
325.12 |
| 162 MXL‐GB |
162 |
329.18 |
| 165 MXL‐GB |
165 |
335.28 |
| 170 MXL‐GB |
170 |
345.44 |
| 171 MXL‐GB |
171 |
347.47 |
| 175 MXL‐GB |
175 |
355.60 |
| 177 MXL‐GB |
177 |
359.66 |
| 180 MXL‐GB |
180 |
365.76 |
| 184 MXL‐GB |
184 |
373.89 |
| 185 MXL‐GB |
185 |
375.92 |
| 186 MXL‐GB |
186 |
377.95 |
| 187 MXL‐GB |
187 |
379.98 |
| Product Code |
Number of teeth |
Pitch Length (mm) |
| 188 MXL‐GB |
188 |
382.02 |
| 190 MXL‐GB |
190 |
386.08 |
| 192 MXL‐GB |
192 |
390.14 |
| 194 MXL‐GB |
194 |
394.21 |
| 195 MXL‐GB |
195 |
396.24 |
| 198 MXL‐GB |
198 |
402.34 |
| 200 MXL‐GB |
200 |
406.40 |
| 203 MXL‐GB |
203 |
412.50 |
| 205 MXL‐GB |
205 |
416.56 |
| 210 MXL‐GB |
210 |
426.72 |
| 212 MXL‐GB |
212 |
430.78 |
| 219 MXL‐GB |
219 |
445.01 |
| 220 MXL‐GB |
220 |
447.04 |
| 221 MXL‐GB |
221 |
449.07 |
| 222 MXL‐GB |
222 |
451.10 |
| 224 MXL‐GB |
224 |
455.17 |
| 226 MXL‐GB |
226 |
459.23 |
| 227 MXL‐GB |
227 |
461.26 |
| 228 MXL‐GB |
228 |
463.30 |
| 230 MXL‐GB |
230 |
467.36 |
| 232 MXL‐GB |
232 |
471.42 |
| 236 MXL‐GB |
236 |
479.55 |
| 239 MXL‐GB |
239 |
485.65 |
| 240 MXL‐GB |
240 |
487.68 |
| 245 MXL‐GB |
245 |
497.84 |
| 248 MXL‐GB |
248 |
503.94 |
| 250 MXL‐GB |
250 |
508.00 |
| 256 MXL‐GB |
256 |
520.19 |
| 260 MXL‐GB |
260 |
528.32 |
| 262 MXL‐GB |
262 |
532.38 |
| 265 MXL‐GB |
265 |
538.48 |
| 270 MXL‐GB |
270 |
548.64 |
| 273 MXL‐GB |
273 |
554.74 |
| 275 MXL‐GB |
275 |
558.80 |
| 278 MXL‐GB |
278 |
564.90 |
| 280 MXL‐GB |
280 |
568.96 |
| 281 MXL‐GB |
281 |
570.99 |
| 285 MXL‐GB |
285 |
579.12 |
| 288 MXL‐GB |
288 |
585.22 |
| 290 MXL‐GB |
290 |
589.28 |
| 295 MXL‐GB |
295 |
599.44 |
| 297 MXL‐GB |
297 |
603.50 |
| 300 MXL‐GB |
300 |
609.60 |
| 302 MXL‐GB |
302 |
613.66 |
| 305 MXL‐GB |
305 |
619.76 |
| 310 MXL‐GB |
310 |
629.92 |
| 312 MXL‐GB |
312 |
633.98 |
| 315 MXL‐GB |
315 |
640.08 |
| 318 MXL‐GB |
318 |
646.18 |
| 320 MXL‐GB |
320 |
650.24 |
| 324 MXL‐GB |
324 |
658.37 |
| 330 MXL‐GB |
330 |
670.56 |
| 332 MXL‐GB |
332 |
674.62 |
| 334 MXL‐GB |
334 |
678.69 |
| 336 MXL‐GB |
336 |
682.75 |
| 337 MXL‐GB |
337 |
684.78 |
| 338 MXL‐GB |
338 |
686.82 |
| 339 MXL‐GB |
339 |
688.85 |
| 344 MXL‐GB |
344 |
699.01 |
| 347 MXL‐GB |
347 |
705.10 |
| 348 MXL‐GB |
348 |
707.14 |
| 350 MXL‐GB |
350 |
711.20 |
| 355 MXL‐GB |
355 |
721.36 |
| 359 MXL‐GB |
359 |
729.49 |
| 364 MXL‐GB |
364 |
739.65 |
| 365 MXL‐GB |
365 |
741.68 |
| 367 MXL‐GB |
367 |
745.74 |
| 372 MXL‐GB |
372 |
755.90 |
| 380 MXL‐GB |
380 |
772.16 |
| 386 MXL‐GB |
386 |
784.35 |
| 388 MXL‐GB |
388 |
788.42 |
| 397 MXL‐GB |
397 |
806.70 |
| 400 MXL‐GB |
400 |
812.80 |
| 405 MXL‐GB |
405 |
822.96 |
| 411 MXL‐GB |
411 |
835.15 |
| 415 MXL‐GB |
415 |
843.28 |
| 419 MXL‐GB |
419 |
851.41 |
| 420 MXL‐GB |
420 |
853.44 |
| 424 MXL‐GB |
424 |
861.57 |
| 435 MXL‐GB |
435 |
883.92 |
| 436 MXL‐GB |
436 |
885.95 |
| 438 MXL‐GB |
438 |
890.02 |
| 448 MXL‐GB |
448 |
910.34 |
| 453 MXL‐GB |
453 |
920.50 |
| 464 MXL‐GB |
464 |
942.85 |
| 475 MXL‐GB |
475 |
965.20 |
| 477 MXL‐GB |
477 |
969.26 |
| 478 MXL‐GB |
478 |
971.30 |
| 487 MXL‐GB |
487 |
989.58 |
| 498 MXL‐GB |
498 |
1011.94 |
| 500 MXL‐GB |
500 |
1016.00 |
| 503 MXL‐GB |
503 |
1022.10 |
| 507 MXL‐GB |
507 |
1030.22 |
| 515 MXL‐GB |
515 |
1046.48 |
| 516 MXL‐GB |
516 |
1048.51 |
| 520 MXL‐GB |
520 |
1056.64 |
| 525 MXL‐GB |
525 |
1066.80 |
| 535 MXL‐GB |
535 |
1087.12 |
| 537 MXL‐GB |
537 |
1091.18 |
| 548 MXL‐GB |
548 |
1113.54 |
| 550 MXL‐GB |
550 |
1117.60 |
| 569 MXL‐GB |
569 |
1156.21 |
| 591 MXL‐GB |
591 |
1200.91 |
| 650 MXL‐GB |
650 |
1320.80 |
| 705 MXL‐GB |
705 |
1432.56 |
| 772 MXL‐GB |
772 |
1568.70 |
| 1369 MXL‐GB |
1369 |
2781.81 |
