Timing Belts G (L) Standard Belt Sizes

Product Code
510 L 100 G
Nominal Length
(inch)×10
51 inch (1295.40 mm)		 Tooth Profile Nominal Width
(inch)×100
1 inch (25.4 mm)		 G Type (rubber)

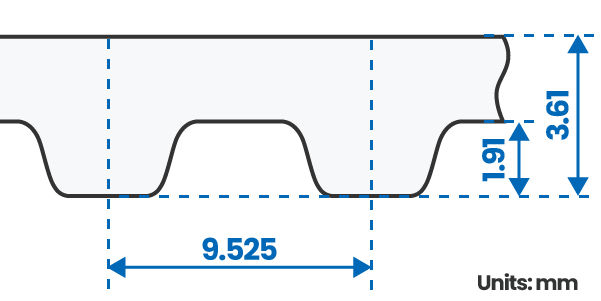

Tooth Profile
Tooth Profile
Width Lineup
Nominal width Belt width (mm)
05012.7
07519.1
10025.4
15038.1

Belt Sizes

Product Code Number of teeth  Pitch Length (mm)
109 L‐G 29 276.23
124 L‐G 33 314.33
135 L‐G 36 342.90
150 L‐G 40 381.00
165 L‐G 44 419.10
173 L‐G 46 438.15
180 L‐G 48 457.20
187 L‐G 50 476.25
210 L‐G 56 533.40
217 L‐G 58 552.45
225 L‐G 60 571.50
232 L‐G 62 590.55
240 L‐G 64 609.60
255 L‐G 68 647.70
265 L‐G 71 676.28
270 L‐G 72 685.80
277 L‐G 74 704.85
285 L‐G 76 723.90
300 L‐G 80 762.00
315 L‐G 84 800.10
320 L‐G 85 809.63
322 L‐G 86 819.15
334 L‐G 89 847.73
337 L‐G 90 857.25
345 L‐G 92 876.30
360 L‐G 96 914.40
Product Code Number of teeth  Pitch Length (mm)
367 L‐G 98 933.45
375 L‐G 100 952.50
382 L‐G 102 971.55
390 L‐G 104 990.60
394 L‐G 105 1000.13
398 L‐G 106 1009.65
420 L‐G 112 1066.80
427 L‐G 114 1085.85
435 L‐G 116 1104.90
450 L‐G 120 1143.00
454 L‐G 121 1152.53
480 L‐G 128 1219.20
510 L‐G 136 1295.40
525 L‐G 140 1333.50
540 L‐G 144 1371.60
548 L‐G 146 1390.65
581 L‐G 155 1476.38
600 L‐G 160 1524.00
630 L‐G 168 1600.20
653 L‐G 174 1657.35
660 L‐G 176 1676.40
697 L‐G 186 1771.65
731 L‐G 195 1857.38
934 L‐G 249 2371.73
1174 L‐G 313 2981.33
1264 L‐G 337 3209.93
