Size - Spec

Timing Belts G (H) Standard Belt Sizes

Product Code
510 H 100 G
Nominal Length
(inch)×10
51 inch (1295.40 mm)		 Tooth Profile Nominal Width
(inch)×100
1 inch (25.4 mm)		 G Type (rubber)

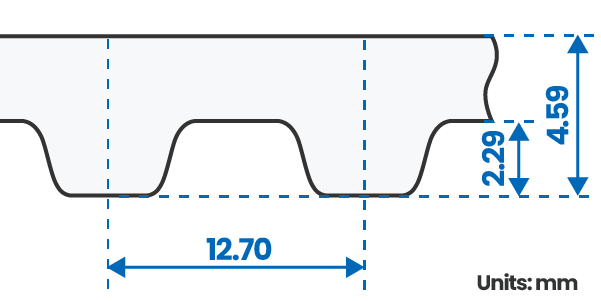

Tooth Profile
Tooth Profile
Width Lineup
Nominal width Belt width (mm)
07519.1
10025.4
15038.1
20050.8
30076.2

Belt Sizes

Product Code Number of teeth Pitch Length  (mm)
225 H‐G 45 571.50
230 H‐G 46 584.20
240 H‐G 48 609.60
245 H‐G 49 622.30
255 H‐G 51 647.70
270 H‐G 54 685.80
280 H‐G 56 711.20
300 H‐G 60 762.00
310 H‐G 62 787.40
315 H‐G 63 800.10
320 H‐G 64 812.80
330 H‐G 66 838.20
340 H‐G 68 863.60
350 H‐G 70 889.00
360 H‐G 72 914.40
370 H‐G 74 939.80
375 H‐G 75 952.50
390 H‐G 78 990.60
400 H‐G 80 1016.00
410 H‐G 82 1041.40
420 H‐G 84 1066.80
430 H‐G 86 1092.20
450 H‐G 90 1143.00
465 H‐G 93 1181.10
480 H‐G 96 1219.20
490 H‐G 98 1244.60
510 H‐G 102 1295.40
530 H‐G 106 1346.20
540 H‐G 108 1371.60
560 H‐G 112 1422.40
565 H‐G 113 1435.10
570 H‐G 114 1447.80
580 H‐G 116 1473.20
600 H‐G 120 1524.00
605 H‐G 121 1536.70
Product Code Number of teeth Pitch Length  (mm)
625 H‐G 125 1587.50
630 H‐G 126 1600.20
640 H‐G 128 1625.60
650 H‐G 130 1651.00
660 H‐G 132 1676.40
680 H‐G 136 1727.20
700 H‐G 140 1778.00
730 H‐G 146 1854.20
750 H‐G 150 1905.00
770 H‐G 154 1955.80
800 H‐G 160 2032.00
810 H‐G 162 2057.40
840 H‐G 168 2133.60
850 H‐G 170 2159.00
860 H‐G 172 2184.40
880 H‐G 176 2235.20
900 H‐G 180 2286.00
950 H‐G 190 2413.00
1000 H‐G 200 2540.00
1020 H‐G 204 2590.80
1100 H‐G 220 2794.00
1120 H‐G 224 2844.80
1130 H‐G 226 2870.20
1140 H‐G 228 2895.60
1150 H‐G 230 2921.00
1160 H‐G 232 2946.40
1250 H‐G 250 3175.00
1285 H‐G 257 3263.90
1325 H‐G 265 3365.50
1345 H‐G 269 3416.30
1350 H‐G 270 3429.00
1360 H‐G 272 3454.40
1400 H‐G 280 3556.00
1700 H‐G 340 4318.00
1765 H‐G 353 4483.10
