Size - Spec
SUPER TORQUE G (S8M) Standard Belt Sizes
Product Code
| 250 |
S8M |
2000 |
G |
| Nominal Width(mm×10) |
Tooth Profile |
Nominal Length(mm) |
G Type (rubber) |

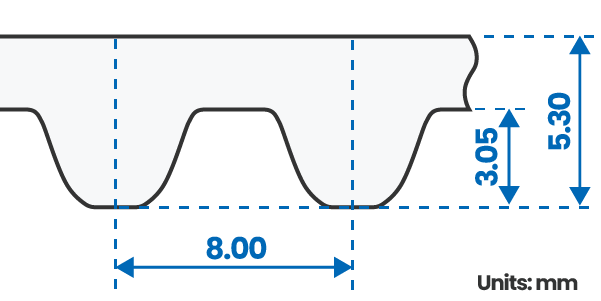

Tooth Profile
Width Lineup
| Nominal width |
Belt width (mm) |
| 150 | 15 |
| 250 | 25 |
| 300 | 30 |
| 400 | 40 |
| 600 | 60 |
Belt Sizes
| Product Code |
Number of teeth |
Pitch Length (mm) |
| S8M 376 G |
47 |
376 |
| S8M 400 G |
50 |
400 |
| S8M 408 G |
51 |
408 |
| S8M 440 G |
55 |
440 |
| S8M 480 G |
60 |
480 |
| S8M 496 G |
62 |
496 |
| S8M 512 G |
64 |
512 |
| S8M 520 G |
65 |
520 |
| S8M 528 G |
66 |
528 |
| S8M 560 G |
70 |
560 |
| S8M 584 G |
73 |
584 |
| S8M 600 G |
75 |
600 |
| S8M 632 G |
79 |
632 |
| S8M 640 G |
80 |
640 |
| S8M 656 G |
82 |
656 |
| S8M 680 G |
85 |
680 |
| S8M 712 G |
89 |
712 |
| S8M 720 G |
90 |
720 |
| S8M 760 G |
95 |
760 |
| S8M 800 G |
100 |
800 |
| S8M 824 G |
103 |
824 |
| S8M 840 G |
105 |
840 |
| S8M 848 G |
106 |
848 |
| S8M 856 G |
107 |
856 |
| S8M 880 G |
110 |
880 |
| S8M 896 G |
112 |
896 |
| S8M 912 G |
114 |
912 |
| S8M 920 G |
115 |
920 |
| S8M 928 G |
116 |
928 |
| S8M 944 G |
118 |
944 |
| S8M 952 G |
119 |
952 |
| S8M 960 G |
120 |
960 |
| S8M 976 G |
122 |
976 |
| S8M 984 G |
123 |
984 |
| S8M 1000 G |
125 |
1000 |
| S8M 1024 G |
128 |
1024 |
| S8M 1040 G |
130 |
1040 |
| S8M 1056 G |
132 |
1056 |
| S8M 1080 G |
135 |
1080 |
| S8M 1096 G |
137 |
1096 |
| S8M 1120 G |
140 |
1120 |
| S8M 1128 G |
141 |
1128 |
| S8M 1136 G |
142 |
1136 |
| S8M 1152 G |
144 |
1152 |
| S8M 1160 G |
145 |
1160 |
| S8M 1184 G |
148 |
1184 |
| S8M 1200 G |
150 |
1200 |
| S8M 1216 G |
152 |
1216 |
| S8M 1224 G |
153 |
1224 |
| S8M 1248 G |
156 |
1248 |
| S8M 1256 G |
157 |
1256 |
| S8M 1280 G |
160 |
1280 |
| S8M 1296 G |
162 |
1296 |
| S8M 1304 G |
163 |
1304 |
| Product Code |
Number of teeth |
Pitch Length (mm) |
| S8M 1312 G |
164 |
1312 |
| S8M 1320 G |
165 |
1320 |
| S8M 1352 G |
169 |
1352 |
| S8M 1360 G |
170 |
1360 |
| S8M 1384 G |
173 |
1384 |
| S8M 1400 G |
175 |
1400 |
| S8M 1424 G |
178 |
1424 |
| S8M 1440 G |
180 |
1440 |
| S8M 1480 G |
185 |
1480 |
| S8M 1488 G |
186 |
1488 |
| S8M 1520 G |
190 |
1520 |
| S8M 1552 G |
194 |
1552 |
| S8M 1600 G |
200 |
1600 |
| S8M 1640 G |
205 |
1640 |
| S8M 1648 G |
206 |
1648 |
| S8M 1680 G |
210 |
1680 |
| S8M 1696 G |
212 |
1696 |
| S8M 1728 G |
216 |
1728 |
| S8M 1760 G |
220 |
1760 |
| S8M 1776 G |
222 |
1776 |
| S8M 1792 G |
224 |
1792 |
| S8M 1800 G |
225 |
1800 |
| S8M 1816 G |
227 |
1816 |
| S8M 1832 G |
229 |
1832 |
| S8M 1880 G |
235 |
1880 |
| S8M 1912 G |
239 |
1912 |
| S8M 1960 G |
245 |
1960 |
| S8M 2000 G |
250 |
2000 |
| S8M 2040 G |
255 |
2040 |
| S8M 2048 G |
256 |
2048 |
| S8M 2064 G |
258 |
2064 |
| S8M 2104 G |
263 |
2104 |
| S8M 2120 G |
265 |
2120 |
| S8M 2160 G |
270 |
2160 |
| S8M 2240 G |
280 |
2240 |
| S8M 2272 G |
284 |
2272 |
| S8M 2304 G |
288 |
2304 |
| S8M 2376 G |
297 |
2376 |
| S8M 2400 G |
300 |
2400 |
| S8M 2496 G |
312 |
2496 |
| S8M 2600 G |
325 |
2600 |
| S8M 2800 G |
350 |
2800 |
| S8M 2920 G |
365 |
2920 |
| S8M 2944 G |
368 |
2944 |
| S8M 3048 G |
381 |
3048 |
| S8M 3200 G |
400 |
3200 |
| S8M 3248 G |
406 |
3248 |
| S8M 3272 G |
409 |
3272 |
| S8M 3440 G |
430 |
3440 |
| S8M 3680 G |
460 |
3680 |
| S8M 3720 G |
465 |
3720 |
| S8M 3904 G |
488 |
3904 |
| S8M 3928 G |
491 |
3928 |
| S8M 4400 G |
550 |
4400 |
