Size - Spec
SUPER TORQUE G (S5M) Standard Belt Sizes
Product Code
| 250 |
S5M |
1125 |
GB |
| Nominal Width(mm×10) |
Tooth Profile |
Nominal Length(mm) |
GB Type (rubber) |

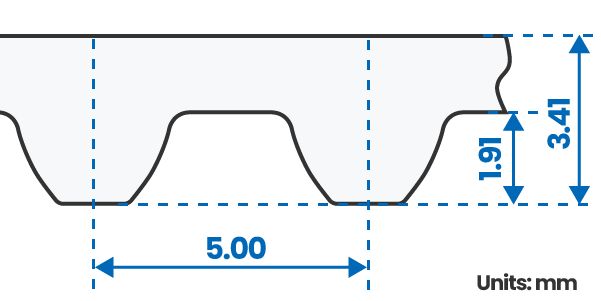

Tooth Profile
Width Lineup
| Nominal width |
Belt width (mm) |
| 100 | 10 |
| 150 | 15 |
| 250 | 25 |
Belt Sizes
| Product Code |
Number of teeth |
Pitch Length (mm) |
| S5M 225 GB |
45 |
225 |
| S5M 255 GB |
51 |
255 |
| S5M 260 GB |
52 |
260 |
| S5M 285 GB |
57 |
285 |
| S5M 295 GB |
59 |
295 |
| S5M 300 GB |
60 |
300 |
| S5M 305 GB |
61 |
305 |
| S5M 320 GB |
64 |
320 |
| S5M 325 GB |
65 |
325 |
| S5M 340 GB |
68 |
340 |
| S5M 350 GB |
70 |
350 |
| S5M 360 GB |
72 |
360 |
| S5M 375 GB |
75 |
375 |
| S5M 380 GB |
76 |
380 |
| S5M 385 GB |
77 |
385 |
| S5M 390 GB |
78 |
390 |
| S5M 395 GB |
79 |
395 |
| S5M 400 GB |
80 |
400 |
| S5M 405 GB |
81 |
405 |
| S5M 410 GB |
82 |
410 |
| S5M 420 GB |
84 |
420 |
| S5M 425 GB |
85 |
425 |
| S5M 430 GB |
86 |
430 |
| S5M 435 GB |
87 |
435 |
| S5M 440 GB |
88 |
440 |
| S5M 450 GB |
90 |
450 |
| S5M 460 GB |
92 |
460 |
| S5M 465 GB |
93 |
465 |
| S5M 470 GB |
94 |
470 |
| S5M 475 GB |
95 |
475 |
| S5M 490 GB |
98 |
490 |
| S5M 500 GB |
100 |
500 |
| S5M 520 GB |
104 |
520 |
| S5M 525 GB |
105 |
525 |
| S5M 530 GB |
106 |
530 |
| S5M 545 GB |
109 |
545 |
| S5M 550 GB |
110 |
550 |
| S5M 560 GB |
112 |
560 |
| S5M 575 GB |
115 |
575 |
| S5M 590 GB |
118 |
590 |
| S5M 595 GB |
119 |
595 |
| S5M 600 GB |
120 |
600 |
| S5M 615 GB |
123 |
615 |
| S5M 625 GB |
125 |
625 |
| S5M 640 GB |
128 |
640 |
| S5M 650 GB |
130 |
650 |
| S5M 665 GB |
133 |
665 |
| S5M 670 GB |
134 |
670 |
| S5M 675 GB |
135 |
675 |
| S5M 690 GB |
138 |
690 |
| S5M 695 GB |
139 |
695 |
| S5M 700 GB |
140 |
700 |
| S5M 710 GB |
142 |
710 |
| S5M 720 GB |
144 |
720 |
| S5M 725 GB |
145 |
725 |
| S5M 730 GB |
146 |
730 |
| S5M 740 GB |
148 |
740 |
| S5M 750 GB |
150 |
750 |
| S5M 765 GB |
153 |
765 |
| S5M 770 GB |
154 |
770 |
| S5M 780 GB |
156 |
780 |
| S5M 800 GB |
160 |
800 |
| Product Code |
Number of teeth |
Pitch Length (mm) |
| S5M 810 GB |
162 |
810 |
| S5M 830 GB |
166 |
830 |
| S5M 845 GB |
169 |
845 |
| S5M 850 GB |
170 |
850 |
| S5M 870 GB |
174 |
870 |
| S5M 890 GB |
178 |
890 |
| S5M 900 GB |
180 |
900 |
| S5M 930 GB |
186 |
930 |
| S5M 950 GB |
190 |
950 |
| S5M 965 GB |
193 |
965 |
| S5M 975 GB |
195 |
975 |
| S5M 980 GB |
196 |
980 |
| S5M 1000 GB |
200 |
1000 |
| S5M 1025 GB |
205 |
1025 |
| S5M 1050 GB |
210 |
1050 |
| S5M 1055 GB |
211 |
1055 |
| S5M 1085 GB |
217 |
1085 |
| S5M 1090 GB |
218 |
1090 |
| S5M 1100 GB |
220 |
1100 |
| S5M 1105 GB |
221 |
1105 |
| S5M 1115 GB |
223 |
1115 |
| S5M 1120 GB |
224 |
1120 |
| S5M 1125 GB |
225 |
1125 |
| S5M 1135 GB |
227 |
1135 |
| S5M 1145 GB |
229 |
1145 |
| S5M 1160 GB |
232 |
1160 |
| S5M 1165 GB |
233 |
1165 |
| S5M 1195 GB |
239 |
1195 |
| S5M 1200 GB |
240 |
1200 |
| S5M 1225 GB |
245 |
1225 |
| S5M 1250 GB |
250 |
1250 |
| S5M 1270 GB |
254 |
1270 |
| S5M 1290 GB |
258 |
1290 |
| S5M 1295 GB |
259 |
1295 |
| S5M 1350 GB |
270 |
1350 |
| S5M 1420 GB |
284 |
1420 |
| S5M 1475 GB |
295 |
1475 |
| S5M 1500 GB |
300 |
1500 |
| S5M 1505 GB |
301 |
1505 |
| S5M 1530 GB |
306 |
1530 |
| S5M 1595 GB |
319 |
1595 |
| S5M 1605 GB |
321 |
1605 |
| S5M 1615 GB |
323 |
1615 |
| S5M 1660 GB |
332 |
1660 |
| S5M 1680 GB |
336 |
1680 |
| S5M 1690 GB |
338 |
1690 |
| S5M 1715 GB |
343 |
1715 |
| S5M 1800 GB |
360 |
1800 |
| S5M 1945 GB |
389 |
1945 |
| S5M 2000 GB |
400 |
2000 |
| S5M 2050 GB |
410 |
2050 |
| S5M 2145 GB |
429 |
2145 |
| S5M 2255 GB |
451 |
2255 |
| S5M 2480 GB |
496 |
2480 |
| S5M 2525 GB |
505 |
2525 |
| S5M 2670 GB |
534 |
2670 |
| S5M 2870 GB |
574 |
2870 |
| S5M 2980 GB |
596 |
2980 |
| S5M 3090 GB |
618 |
3090 |
| S5M 3180 GB |
636 |
3180 |
| S5M 3270 GB |
654 |
3270 |
| S5M 3480 GB |
696 |
3480 |
