Size - Spec
SUPER TORQUE G (S3M) Standard Belt Sizes
Product Code
| 100 |
S3M |
459 |
GB |
| Nominal Width(mm×10) |
Tooth Profile |
Nominal length(mm) |
GB Type (rubber) |

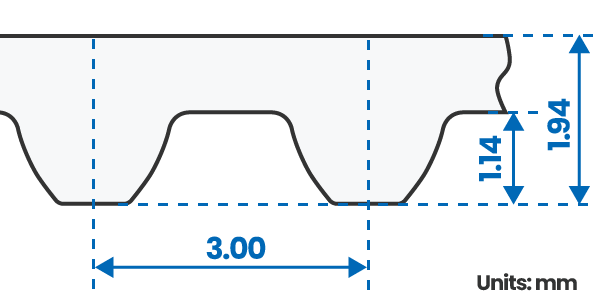

Tooth Profile
Width Lineup
| Nominal width |
Belt width (mm) |
| 60 | 6 |
| 100 | 10 |
| 150 | 15 |
Belt Sizes
| Product Code |
Number of teeth |
Pitch Length (mm) |
| S3M 96 GB |
32 |
96 |
| S3M 102 GB |
34 |
102 |
| S3M 114 GB |
38 |
114 |
| S3M 117 GB |
39 |
117 |
| S3M 120 GB |
40 |
120 |
| S3M 123 GB |
41 |
123 |
| S3M 129 GB |
43 |
129 |
| S3M 132 GB |
44 |
132 |
| S3M 135 GB |
45 |
135 |
| S3M 141 GB |
47 |
141 |
| S3M 144 GB |
48 |
144 |
| S3M 147 GB |
49 |
147 |
| S3M 150 GB |
50 |
150 |
| S3M 156 GB |
52 |
156 |
| S3M 159 GB |
53 |
159 |
| S3M 162 GB |
54 |
162 |
| S3M 168 GB |
56 |
168 |
| S3M 171 GB |
57 |
171 |
| S3M 174 GB |
58 |
174 |
| S3M 177 GB |
59 |
177 |
| S3M 180 GB |
60 |
180 |
| S3M 183 GB |
61 |
183 |
| S3M 186 GB |
62 |
186 |
| S3M 189 GB |
63 |
189 |
| S3M 192 GB |
64 |
192 |
| S3M 195 GB |
65 |
195 |
| S3M 198 GB |
66 |
198 |
| S3M 201 GB |
67 |
201 |
| S3M 204 GB |
68 |
204 |
| S3M 207 GB |
69 |
207 |
| S3M 210 GB |
70 |
210 |
| S3M 213 GB |
71 |
213 |
| S3M 216 GB |
72 |
216 |
| S3M 219 GB |
73 |
219 |
| S3M 222 GB |
74 |
222 |
| S3M 225 GB |
75 |
225 |
| S3M 228 GB |
76 |
228 |
| S3M 231 GB |
77 |
231 |
| S3M 234 GB |
78 |
234 |
| S3M 237 GB |
79 |
237 |
| S3M 246 GB |
82 |
246 |
| S3M 252 GB |
84 |
252 |
| S3M 255 GB |
85 |
255 |
| S3M 258 GB |
86 |
258 |
| S3M 261 GB |
87 |
261 |
| S3M 264 GB |
88 |
264 |
| S3M 267 GB |
89 |
267 |
| S3M 270 GB |
90 |
270 |
| S3M 273 GB |
91 |
273 |
| S3M 276 GB |
92 |
276 |
| S3M 279 GB |
93 |
279 |
| S3M 282 GB |
94 |
282 |
| S3M 285 GB |
95 |
285 |
| S3M 288 GB |
96 |
288 |
| S3M 291 GB |
97 |
291 |
| S3M 300 GB |
100 |
300 |
| S3M 303 GB |
101 |
303 |
| S3M 306 GB |
102 |
306 |
| S3M 309 GB |
103 |
309 |
| S3M 312 GB |
104 |
312 |
| S3M 315 GB |
105 |
315 |
| S3M 318 GB |
106 |
318 |
| S3M 324 GB |
108 |
324 |
| S3M 327 GB |
109 |
327 |
| S3M 330 GB |
110 |
330 |
| S3M 333 GB |
111 |
333 |
| S3M 336 GB |
112 |
336 |
| S3M 339 GB |
113 |
339 |
| S3M 342 GB |
114 |
342 |
| S3M 345 GB |
115 |
345 |
| S3M 348 GB |
116 |
348 |
| S3M 351 GB |
117 |
351 |
| S3M 354 GB |
118 |
354 |
| S3M 360 GB |
120 |
360 |
| S3M 363 GB |
121 |
363 |
| S3M 366 GB |
122 |
366 |
| S3M 369 GB |
123 |
369 |
| S3M 372 GB |
124 |
372 |
| S3M 375 GB |
125 |
375 |
| S3M 384 GB |
128 |
384 |
| S3M 387 GB |
129 |
387 |
| S3M 393 GB |
131 |
393 |
| S3M 396 GB |
132 |
396 |
| S3M 399 GB |
133 |
399 |
| S3M 402 GB |
134 |
402 |
| S3M 405 GB |
135 |
405 |
| S3M 408 GB |
136 |
408 |
| S3M 414 GB |
138 |
414 |
| S3M 417 GB |
139 |
417 |
| S3M 420 GB |
140 |
420 |
| S3M 423 GB |
141 |
423 |
| S3M 426 GB |
142 |
426 |
| S3M 432 GB |
144 |
432 |
| S3M 435 GB |
145 |
435 |
| S3M 444 GB |
148 |
444 |
| S3M 447 GB |
149 |
447 |
| S3M 453 GB |
151 |
453 |
| S3M 456 GB |
152 |
456 |
| S3M 459 GB |
153 |
459 |
| S3M 468 GB |
156 |
468 |
| S3M 471 GB |
157 |
471 |
| S3M 474 GB |
158 |
474 |
| S3M 480 GB |
160 |
480 |
| S3M 483 GB |
161 |
483 |
| S3M 486 GB |
162 |
486 |
| S3M 489 GB |
163 |
489 |
| S3M 492 GB |
164 |
492 |
| S3M 498 GB |
166 |
498 |
| S3M 501 GB |
167 |
501 |
| S3M 504 GB |
168 |
504 |
| S3M 507 GB |
169 |
507 |
| S3M 510 GB |
170 |
510 |
| S3M 513 GB |
171 |
513 |
| Product Code |
Number of teeth |
Pitch Length (mm) |
| S3M 516 GB |
172 |
516 |
| S3M 519 GB |
173 |
519 |
| S3M 522 GB |
174 |
522 |
| S3M 525 GB |
175 |
525 |
| S3M 528 GB |
176 |
528 |
| S3M 537 GB |
179 |
537 |
| S3M 540 GB |
180 |
540 |
| S3M 543 GB |
181 |
543 |
| S3M 549 GB |
183 |
549 |
| S3M 552 GB |
184 |
552 |
| S3M 558 GB |
186 |
558 |
| S3M 561 GB |
187 |
561 |
| S3M 564 GB |
188 |
564 |
| S3M 570 GB |
190 |
570 |
| S3M 573 GB |
191 |
573 |
| S3M 576 GB |
192 |
576 |
| S3M 579 GB |
193 |
579 |
| S3M 582 GB |
194 |
582 |
| S3M 588 GB |
196 |
588 |
| S3M 591 GB |
197 |
591 |
| S3M 597 GB |
199 |
597 |
| S3M 600 GB |
200 |
600 |
| S3M 603 GB |
201 |
603 |
| S3M 609 GB |
203 |
609 |
| S3M 612 GB |
204 |
612 |
| S3M 621 GB |
207 |
621 |
| S3M 624 GB |
208 |
624 |
| S3M 633 GB |
211 |
633 |
| S3M 642 GB |
214 |
642 |
| S3M 645 GB |
215 |
645 |
| S3M 648 GB |
216 |
648 |
| S3M 657 GB |
219 |
657 |
| S3M 660 GB |
220 |
660 |
| S3M 663 GB |
221 |
663 |
| S3M 666 GB |
222 |
666 |
| S3M 669 GB |
223 |
669 |
| S3M 672 GB |
224 |
672 |
| S3M 681 GB |
227 |
681 |
| S3M 687 GB |
229 |
687 |
| S3M 693 GB |
231 |
693 |
| S3M 699 GB |
233 |
699 |
| S3M 720 GB |
240 |
720 |
| S3M 726 GB |
242 |
726 |
| S3M 729 GB |
243 |
729 |
| S3M 741 GB |
247 |
741 |
| S3M 744 GB |
248 |
744 |
| S3M 750 GB |
250 |
750 |
| S3M 753 GB |
251 |
753 |
| S3M 756 GB |
252 |
756 |
| S3M 759 GB |
253 |
759 |
| S3M 762 GB |
254 |
762 |
| S3M 765 GB |
255 |
765 |
| S3M 771 GB |
257 |
771 |
| S3M 774 GB |
258 |
774 |
| S3M 786 GB |
262 |
786 |
| S3M 789 GB |
263 |
789 |
| S3M 804 GB |
268 |
804 |
| S3M 810 GB |
270 |
810 |
| S3M 819 GB |
273 |
819 |
| S3M 825 GB |
275 |
825 |
| S3M 831 GB |
277 |
831 |
| S3M 837 GB |
279 |
837 |
| S3M 852 GB |
284 |
852 |
| S3M 858 GB |
286 |
858 |
| S3M 882 GB |
294 |
882 |
| S3M 888 GB |
296 |
888 |
| S3M 894 GB |
298 |
894 |
| S3M 900 GB |
300 |
900 |
| S3M 909 GB |
303 |
909 |
| S3M 918 GB |
306 |
918 |
| S3M 927 GB |
309 |
927 |
| S3M 936 GB |
312 |
936 |
| S3M 954 GB |
318 |
954 |
| S3M 963 GB |
321 |
963 |
| S3M 999 GB |
333 |
999 |
| S3M 1005 GB |
335 |
1005 |
| S3M 1014 GB |
338 |
1014 |
| S3M 1017 GB |
339 |
1017 |
| S3M 1035 GB |
345 |
1035 |
| S3M 1050 GB |
350 |
1050 |
| S3M 1080 GB |
360 |
1080 |
| S3M 1113 GB |
371 |
1113 |
| S3M 1119 GB |
373 |
1119 |
| S3M 1146 GB |
382 |
1146 |
| S3M 1152 GB |
384 |
1152 |
| S3M 1170 GB |
390 |
1170 |
| S3M 1176 GB |
392 |
1176 |
| S3M 1188 GB |
396 |
1188 |
| S3M 1203 GB |
401 |
1203 |
| S3M 1221 GB |
407 |
1221 |
| S3M 1236 GB |
412 |
1236 |
| S3M 1245 GB |
415 |
1245 |
| S3M 1260 GB |
420 |
1260 |
| S3M 1290 GB |
430 |
1290 |
| S3M 1299 GB |
433 |
1299 |
| S3M 1305 GB |
435 |
1305 |
| S3M 1326 GB |
442 |
1326 |
| S3M 1332 GB |
444 |
1332 |
| S3M 1374 GB |
458 |
1374 |
| S3M 1401 GB |
467 |
1401 |
| S3M 1419 GB |
473 |
1419 |
| S3M 1422 GB |
474 |
1422 |
| S3M 1461 GB |
487 |
1461 |
| S3M 1521 GB |
507 |
1521 |
| S3M 1596 GB |
532 |
1596 |
| S3M 1650 GB |
550 |
1650 |
| S3M 1680 GB |
560 |
1680 |
| S3M 1788 GB |
596 |
1788 |
| S3M 1959 GB |
653 |
1959 |
| S3M 2100 GB |
700 |
2100 |
| S3M 2115 GB |
705 |
2115 |
| S3M 2250 GB |
750 |
2250 |
