Size - Spec
SUPER TORQUE G (S14M) Standard Belt Sizes
Product Code
| 800 |
S14M |
3150 |
G |
| Nominal Width(mm×10) |
Tooth Profile |
Nominal Length(mm) |
G Type (rubber) |

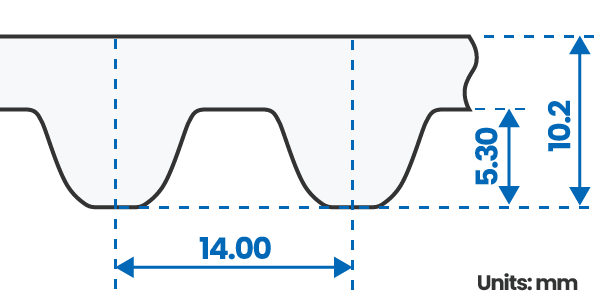

Tooth Profile
Width Lineup
| Nominal width |
Belt width (mm) |
| 400 | 40 |
| 600 | 60 |
| 800 | 80 |
| 1000 | 100 |
| 1200 | 120 |
Belt Sizes
| Product Code |
Number of teeth |
Pitch Length (mm) |
| S14M 1008 G |
72 |
1008 |
| S14M 1120 G |
80 |
1120 |
| S14M 1190 G |
85 |
1190 |
| S14M 1246 G |
89 |
1246 |
| S14M 1288 G |
92 |
1288 |
| S14M 1400 G |
100 |
1400 |
| S14M 1470 G |
105 |
1470 |
| S14M 1540 G |
110 |
1540 |
| S14M 1610 G |
115 |
1610 |
| S14M 1652 G |
118 |
1652 |
| S14M 1708 G |
122 |
1708 |
| S14M 1736 G |
124 |
1736 |
| S14M 1750 G |
125 |
1750 |
| S14M 1778 G |
127 |
1778 |
| S14M 1806 G |
129 |
1806 |
| S14M 1890 G |
135 |
1890 |
| S14M 1932 G |
138 |
1932 |
| S14M 1960 G |
140 |
1960 |
| S14M 2002 G |
143 |
2002 |
| Product Code |
Number of teeth |
Pitch Length (mm) |
| S14M 2100 G |
150 |
2100 |
| S14M 2198 G |
157 |
2198 |
| S14M 2240 G |
160 |
2240 |
| S14M 2310 G |
165 |
2310 |
| S14M 2380 G |
170 |
2380 |
| S14M 2450 G |
175 |
2450 |
| S14M 2506 G |
179 |
2506 |
| S14M 2590 G |
185 |
2590 |
| S14M 2660 G |
190 |
2660 |
| S14M 2800 G |
200 |
2800 |
| S14M 2940 G |
210 |
2940 |
| S14M 3150 G |
225 |
3150 |
| S14M 3360 G |
240 |
3360 |
| S14M 3500 G |
250 |
3500 |
| S14M 3556 G |
254 |
3556 |
| S14M 3850 G |
275 |
3850 |
| S14M 4004 G |
286 |
4004 |
| S14M 4508 G |
322 |
4508 |
| S14M 5012 G |
358 |
5012 |
