Size - Spec
MEGA TORQUE EX (MTS5M) Standard Belt Sizes
Product Code
| 100 |
MT |
S5M |
500 |
EX |
| Nominal Width(mm×10) |
MEGA TORQUE |
Tooth Profile |
Nominal Length(mm) |
Specification(EX) |

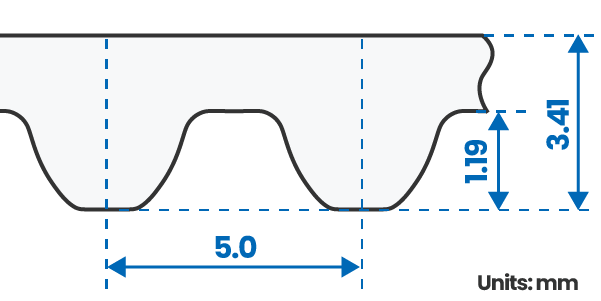

Tooth Profile
Width Lineup
| Nominal width |
Belt width (mm) |
| 100 | 10 |
| 150 | 15 |
| 250 | 25 |
Belt Sizes
| Product Code |
Number of teeth |
Pitch Length (mm) |
| MTS5M 275 EX |
55 |
275 |
| MTS5M 300 EX |
60 |
300 |
| MTS5M 325 EX |
65 |
325 |
| MTS5M 350 EX |
70 |
350 |
| MTS5M 400 EX |
80 |
400 |
| MTS5M 435 EX |
87 |
435 |
| MTS5M 450 EX |
90 |
450 |
| MTS5M 500 EX |
100 |
500 |
| MTS5M 510 EX |
102 |
510 |
| MTS5M 525 EX |
105 |
525 |
| MTS5M 550 EX |
110 |
550 |
| MTS5M 575 EX |
115 |
575 |
| MTS5M 600 EX |
120 |
600 |
| MTS5M 650 EX |
130 |
650 |
| Product Code |
Number of teeth |
Pitch Length (mm) |
| MTS5M 670 EX |
134 |
670 |
| MTS5M 690 EX |
138 |
690 |
| MTS5M 700 EX |
140 |
700 |
| MTS5M 720 EX |
144 |
720 |
| MTS5M 750 EX |
150 |
750 |
| MTS5M 800 EX |
160 |
800 |
| MTS5M 850 EX |
170 |
850 |
| MTS5M 880 EX |
176 |
880 |
| MTS5M 900 EX |
180 |
900 |
| MTS5M 950 EX |
190 |
950 |
| MTS5M 1000 EX |
200 |
1000 |
| MTS5M 1780 EX |
356 |
1780 |
| MTS5M 3835 EX |
767 |
3835 |
