Size - Spec
GIGA TORQUE GX (G8M) Standard Belt Sizes
Product Code
| 360 |
G8M |
2400 |
GX |
| Nominal Width (mm×10) |
Tooth Profile |
Nominal Length (mm) |
Specification (GX) |

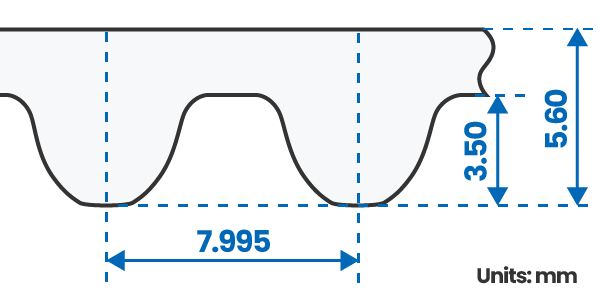

Tooth Profile
Width Lineup
| Nominal width |
Belt width (mm) |
| 120 | 12 |
| 200 | 20 |
| 210 | 21 |
| 300 | 30 |
| 360 | 36 |
| 500 | 50 |
| 620 | 62 |
| 800 | 80 |
Belt Sizes
| Product Code |
Number of teeth |
Pitch Length (mm) |
| G8M 640 GX |
80 |
640 |
| G8M 720 GX |
90 |
720 |
| G8M 800 GX |
100 |
800 |
| G8M 880 GX |
110 |
880 |
| G8M 896 GX |
112 |
896 |
| G8M 960 GX |
120 |
960 |
| G8M 1000 GX |
125 |
1000 |
| G8M 1024 GX |
128 |
1024 |
| G8M 1040 GX |
130 |
1040 |
| G8M 1056 GX |
132 |
1056 |
| G8M 1096 GX |
137 |
1096 |
| G8M 1120 GX |
140 |
1120 |
| G8M 1200 GX |
150 |
1200 |
| G8M 1224 GX |
153 |
1224 |
| G8M 1280 GX |
160 |
1280 |
| G8M 1312 GX |
164 |
1312 |
| G8M 1400 GX |
175 |
1400 |
| G8M 1440 GX |
180 |
1440 |
| G8M 1600 GX |
200 |
1600 |
| G8M 1672 GX |
209 |
1672 |
| Product Code |
Number of teeth |
Pitch Length (mm) |
| G8M 1760 GX |
220 |
1760 |
| G8M 1792 GX |
224 |
1792 |
| G8M 1800 GX |
225 |
1800 |
| G8M 1912 GX |
239 |
1912 |
| G8M 2000 GX |
250 |
2000 |
| G8M 2104 GX |
263 |
2104 |
| G8M 2200 GX |
275 |
2200 |
| G8M 2240 GX |
280 |
2240 |
| G8M 2400 GX |
300 |
2400 |
| G8M 2520 GX |
315 |
2520 |
| G8M 2600 GX |
325 |
2600 |
| G8M 2800 GX |
350 |
2800 |
| G8M 2840 GX |
355 |
2840 |
| G8M 3048 GX |
381 |
3048 |
| G8M 3200 GX |
400 |
3200 |
| G8M 3280 GX |
410 |
3280 |
| G8M 3600 GX |
450 |
3600 |
| G8M 4000 GX |
500 |
4000 |
| G8M 4400 GX |
550 |
4400 |
